0.7mpa Natural Gas Fired Steam Boiler Stainless Steel Horizontal Style 200kg/H

Product Categories
Energy Smart Technology(Dong Guan) Co., Ltd.
Contact Now

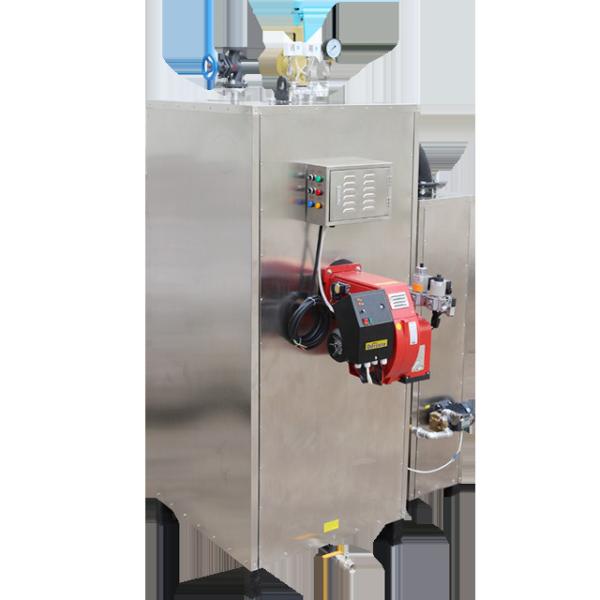

0.7mpa Natural Gas Fired Steam Boiler Stainless Steel Horizontal Style 200kg/H

Place of Origin : China

Brand Name : Enligy

Price : $6,599.00/Sets 1-99 Sets

Applicable Industries : Garment Shops, Building Material Shops, Machinery Repair Shops, Food & Beverage Factory, Restaurant, Home Use, Food Shop, Printing Shops, Energy & Mining, Food & Beverage Shops

After Warranty Service : Video technical support, Online support, Spare parts, Field maintenance and repair service

Local Service Location : Kyrgyzstan

Core Components : Enligy

Dimension(L*W*H) : 1100X1100X2300 mm

Weight : 850KG

Steam Capacity : 200kg/h

Thermal efficiency : 95%

Working pressure : 0.7mpa 7bar

Fuel consumption : 17 m3/H

Fuel Type : Gas Diesel

Contact Now

0.7mpa Natural Gas Fired Steam Boiler Stainless Steel Horizontal Style 200kg/H

Natural Gas Steam Generator Boiler Light Diesel Fire Oem Steel Stainless Item Horizontal Style Industrial Sale 200kg/H

Comprehensive Introduction
The gas steam generator produces pure steam by firing gas (including natural gas,liquefied gas, LPG, propane).The main components are gas burner, water tank, water-feeding pump, controlling system, furnace, pressure controller, pressure gauge, safety valve, sensor of water level. Comparing to traditonal steam boiler(coal, wood,pellet,biomass fired), gas steam boiler is more eco-friendly and efficent, without men on duty
The gas steam boiler is widely used in food cooking, clothes flat ironing, industrial cleaning, equipment cleaning, sauna room, sterilization, central heating etc.
Parameters
Evaporation
200 KG/H
Steam pressure
0.7 Mpa
Designed fuel
diesel, gas, liquefied gas
Steam temperature
170 Degree celsius
Gas consumption
17m3/h(natural gas)
14m3/h(liquefied gas)
14KG/h(diesel)
Voltage
380 V
Water tank volume
49L
Water pressure
1.05 Mpa
Waste outlet diameter
DN40
Steam outlet diameter
DN20
Smoke outlet diameter
159mm
Weight
850 KG
Dimension
800*760*2180 mm
0.7mpa Natural Gas Fired Steam Boiler Stainless Steel Horizontal Style 200kg/H

Application

  1. Washing ironing industry: dry washer, dryer and washing machine, dryer, ironing machine, electric iron, and other ancillary equipment.
  2. Packaging machinery industry: labeling machine, marking machine.
  3. Bio-chemical industry: fermentation tank, reactor, sandwich pot, blender, emulsifier and other supporting equipment
  4. Food machinery industry: Tofu machine, steam box, sterilization tank, packaging machines, coating equipment, sub-mouth machines etc.
  5. Other industries: (oil, automobile) steam cleaning industry (hotels, dormitories, schools, mixing station) hot water supply, (bridges, railways) concrete curing, (casual beauty club) sauna, the heat exchange equipment, etc.
After sales service
1.During the 1 year warranty time, the steam generator could be renewed if suffers bugs not by man-made intentional way. You can enjoy free maintenance service from us.
2. out of the 1 year warranty time, the steam generator maintenance service will be charged.
Company Introduction
Dongguan Zhengqi'an technology company is a famous manufacturer that produce electrical automatic steam generator, steam boiler ,steam cleaning machine , smart steam ironing machine.
